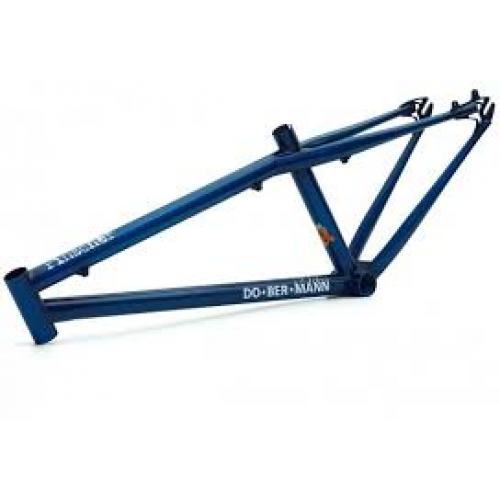

Dobermann Pinscher

Spec's and Geo overview :

Material : True temper and aerospace 4130 cromoly tubing
Size's : 21.5'', 22.5'' top-tube lenghts
Weigth : 24'': 5.1lbs short , 26'': 5.4lbs short

Colors : Trans-Blue + Orange
Head tube : 1 1/8'' press fit, 110mm lenght.
BB : 73mm euro
Dropouts : 10x135mm (regular MTB hub)
Brake: Disk brake mounts (Vbrake option available)
Seat tube : 11.5'' long (all sizes), 31.6mm seat post, 34.9mm seat clamp
Head angle: 72°( both wheel size, 427mm Tchokr Fork)
Seat angle: 74° ( both wheek size, 427mm Tchokr Fork)
BB location : -6.4 mm from the axle line (both wheel size)
BB heigth: 26's: 12,7/8''(327mm) , 24's: 12, 1/8''(307.9mm)
Chainstay length: 15'' (381 mm) on 26's , 14.173' '(360 mm) on 24's
Wheel base :973 mm (small 24''), 1001 mm(small 26''), 994 mm(large 24''), 1022 mm(large 26'')
Standover heigth: 24'' on 26's , 23''on 24's (top tube and seat tube jonction)
