Dobermann Le Pink

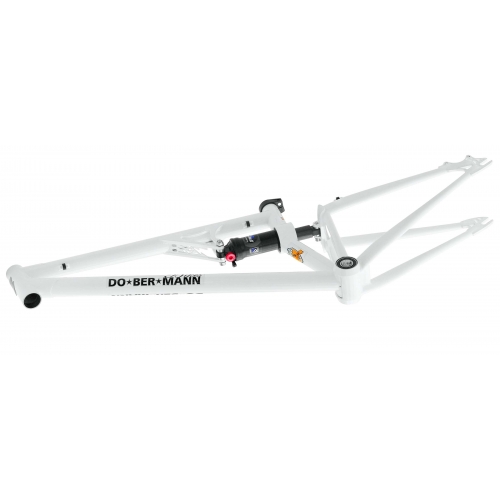

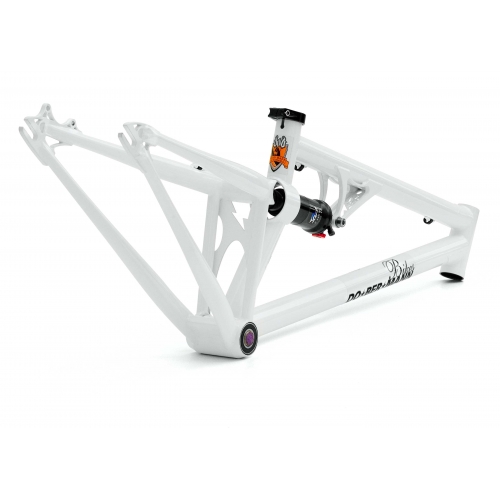

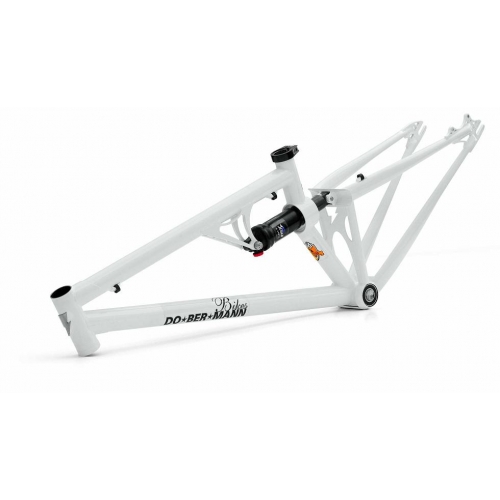

Dobermann Le Pink frame

The LePink frame is a short travel full suspension frame, designed to throw some big moves on the Slopestyle course, dirt jump track, favorite freeride spot or anywhere you wish.

The Pinsher-inspired geometry makes it feel like a Pinsher … but … PLUSH!!! Ideal to go big!

Using a co-axial pivot system, composed of 2 MID bottom bracket allows us to save some weight and increase rigidity. Hardtail riders that need the extra travel will feel right at home, on this puppy.

Strong and stiff, it is simply the most reliable, yet lightweight slopestyle bike on the market. The 19mm bottom bracket axle (not included) works as the swing arms pivot and crank spindle, at the same time, which helps save weight, while increasing the bearings life as they rotate… no compromise here, simply the best!

Feature :

- 4inches of travel on a 2 :1 shock ratio from a lightweight fox air shox
- Co-axial pivot system around a Mid bottom bracket
- Super short 388mm (15.25inch) chainstays
- THE lowest standover height on the market (300mm)
- 1.1/8 headtube
- Light weight laser cut drop out, single speed only
- True Temper tubes and aerospace 4130 cromoly
- Optionnal derailleur hanger and 05 ISCG mount (4x package)

Geo :
69 degree headtube 110mm long
71 degree seat tube 300mm long
Super short chain stays 15.25inch (388mm)
31.6 seat tube

Frame sizes :
Small 21.5 top tube
Large 22.5 top tube
